In my previous post we deployed the Envoy Gateway API to provide an interface to the internet. With that setup, any workload can be exposed to the public web through two IP addresses (the VPS).

In this post, we take the next step: deploying bind9 to serve an authoritative DNS zone over both UDP and TCP on port 53 via UDPRoute and TCPRoute.

Note: UDPRoute is still in the experimental channel of Gateway API.

Why bind9?

So why bind9 at all? I experimented with CoreDNS as well, but bind9 brings maturity, stability, and additional features right out of the box. It supports DNSSEC, DoH (DNS-over-HTTPS, RFC 8484), and DoT (DNS-over-TLS, RFC 7858). While DoT and DoH are mainly relevant for recursive resolvers rather than authoritative ones, there are standards such as RFC 9539 that describe recursive-to-authoritative encryption. This makes it worthwhile to enable them even in an authoritative setup.

We will explore DoH and DoT more deeply in a later post, especially in combination with DDR (Discovery of Designated Resolvers, RFC 9462).

For now, the task is to deploy bind9. Using Helm would have made this easier, but unfortunately ISC, the official publisher of the bind9 docker image, does not provide a Helm chart. To complicate things further, our VPSs run on ARM chips, which means ISC’s published Docker image cannot be used directly. The workaround is simple: rely on Canonical’s official bind9 image which is also build for ARM architecture and craft our own deployment manifests.

Configuration

We start with creating a new namespace.

kubectl create ns bind9

Next, we deploy a minimal bind9 configuration for an authoritative DNS zone.

apiVersion: v1
kind: ConfigMap
metadata:
  name: bind9-config
  namespace: bind9
data:
  db.example.com: |
    $TTL    60
    @   IN  SOA ns1.example.com. admin.example.com. (
            2025081101 ; Serial (YYYYMMDDnn)
            60         ; Refresh
            30         ; Retry
            604800     ; Expire
            60 )       ; Negative Cache TTL

    ; nameserver on origin
    @		IN      NS		ns1.example.com.
    @		IN      NS		ns2.example.com.

    ; nameserver 1
    ns1		IN      A		<your-public-ip-vps1>
    ; nameserver 2
    ns2		IN      A		<your-public-ip-vps2>

    ; A records for root domain
    @  IN A <your-public-ip-vps1>
    @  IN A <your-public-ip-vps2>

    ; wildcard for all undefined subdomains
    *   IN A <your-public-ip-vps1>
    *   IN A <your-public-ip-vps2>
  named.conf.local: |
    zone "example.com" {
        type master;
        file "/etc/bind/zones/db.example.com";
        journal "/var/lib/bind/db.example.com.jnl";
    };
  named.conf.options: |
    options {
        directory "/var/cache/bind";

        // Disable recursion: authoritative only
        recursion no;
        allow-query { any; };

        // Disable DNSSEC validation (since it's for challenges)
        dnssec-validation no;

        // Listen on IPv4 interfaces (we consider IPv6 in a later post)
        listen-on { any; };
        listen-on-v6 { none; };

        minimal-responses no;

        // Minimal logging for debug if needed
        // Uncomment for debugging:
        querylog yes;
    };

The db.example.com file defines the basic zone. It begins with a required SOA record, then sets up A records for our VPSs (ns1.example.com and ns2.example.com). A wildcard record ensures that any subdomain of example.com resolves to one of the two VPS addresses:

*   IN A <your-public-ip-vps1>
*   IN A <your-public-ip-vps2>

This means that everything inside the example.com zone — such as test.example.com — will automatically point to the Kubernetes cluster. No extra zone-file changes are needed when deploying new apps. Envoy Gateway handles the routing based on the hostname and forwards traffic to the correct backend service.

The configuration also makes bind9 authoritative only, with recursion no;, and restricts it to IPv4 for now. We will consider IPv6 and dual-stack support later.

Service and ServiceAccount

Next, we define a Service manifest to route traffic to the bind9 pods. Alongside it, we also create a ServiceAccount. While not strictly necessary at this stage, it is a good practice and lays the groundwork for a potential service mesh integration later.

It’s important to expose both UDP and TCP on port 53. According to RFC 7766 DNS resolvers must support TCP as a fallback to handle cases where UDP alone is insufficient.

apiVersion: v1
kind: ServiceAccount
metadata:
  name: bind9
  namespace: bind9
---
apiVersion: v1
kind: Service
metadata:
  name: bind9
  namespace: bind9
spec:
  selector:
    app: bind9
  ports:
  - name: udp
    protocol: UDP
    port: 53
    targetPort: 53
  - name: tcp
    protocol: TCP
    port: 53
    targetPort: 53
  type: ClusterIP

Deployment

The deployment manifest file looks huge but is fairly simple.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: bind9
  namespace: bind9
spec:
  replicas: 2
  selector:
    matchLabels:
      app: bind9
  template:
    metadata:
      labels:
        app: bind9
    spec:
      serviceAccountName: bind9
      containers:
      - name: bind9
        image: ubuntu/bind9:9.18-24.04_beta
        # this is not optimal though
        livenessProbe:
          tcpSocket:
            port: 53
          initialDelaySeconds: 5
          periodSeconds: 15
          timeoutSeconds: 5
          failureThreshold: 3
        readinessProbe:
          tcpSocket:
            port: 53
          initialDelaySeconds: 5
          periodSeconds: 15
          timeoutSeconds: 5
          failureThreshold: 3
        resources:
          requests:
            memory: "128Mi"
            cpu: "100m"
          limits:
            memory: "512Mi"
            cpu: "500m"
        ports:
        - containerPort: 53
          protocol: UDP
        - containerPort: 53
          protocol: TCP
        volumeMounts:
        - name: journal
          mountPath: /var/lib/bind
        - name: config-volume
          mountPath: /etc/bind/named.conf.options
          subPath: named.conf.options
          readOnly: true
        - name: config-volume
          mountPath: /etc/bind/named.conf.local
          subPath: named.conf.local
          readOnly: true
        - name:  config-volume
          subPath: db.example.com
          mountPath: /etc/bind/zones/db.example.com
          readOnly: true
        securityContext:
          # let entrypoint start as root
          # it will drop priviledges to bind user later through setuid and setgid
          runAsUser: 0
          runAsGroup: 0
          allowPrivilegeEscalation: false
          capabilities:
            drop: ["ALL"]
            add: ["NET_BIND_SERVICE", "SETUID", "SETGID"]
          seccompProfile:
            type: RuntimeDefault
      volumes:
      - name: config-volume
        configMap:
          name: bind9-config
      - name: journal
        emptyDir: {}

We schedule two pods by default (replicas: 2). Each pod is equipped with liveness and readiness probes that check the TCP socket. Unfortunately, Kubernetes does not provide native probes for UDP, so this is the best option available at the moment.

Note that this setup is not perfect. A more robust approach would be to run dig commands against the bind9 process to verify that it can actually handle DNS queries.

For now, two replicas are sufficient since no zone transfers are required. In the future, especially when integrating bind9 with cert-manager, we will need to move to a StatefulSet and enable zone transfers.

To tighten security, we restrict container capabilities. All capabilities are dropped except for NET_BIND_SERVICE, SETUID, and SETGID. The bind9 container initially runs its entrypoint as root to bind to port 53 for both TCP and UDP (NET_BIND_SERVICE), and then drops its privileges to the bind9 user using SETUID and SETGID. We also set allowPrivilegeEscalation: false to ensure the process cannot regain elevated rights. The result is a process that operates with minimal and controlled permissions.

Finally, we mount the ConfigMap containing the configuration and zone files and use an emptyDir volume to store the journal entries temporarily for the livetime of the pod.

You can now test your authoritative DNS server. Just run dig in a container and query the service.

kubectl run dig-shell -n bind9 -it --rm \
  --image=ubuntu:22.04 \
  --restart=Never -- bash

Open a shell and run:

apt update && apt install dnsutils

Fire a DNS request:

dig @bind9.bind9.svc.cluster.local example.com

The DNS server should answer your DNS request as follows.

; <<>> DiG 9.18.39-0ubuntu0.24.04.1-Ubuntu <<>> @dns.example.com example.com
; (2 servers found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 30178
;; flags: qr aa rd; QUERY: 1, ANSWER: 2, AUTHORITY: 2, ADDITIONAL: 3
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 2195f6f230a739700100000068c6a4616bfd49ddaeb5b629 (good)
;; QUESTION SECTION:
;example.com.                      IN      A

;; ANSWER SECTION:
example.com.               60      IN      A       <public-ip-vps1>
example.com.               60      IN      A       <public-ip-vps2>

;; AUTHORITY SECTION:
example.com.               60      IN      NS      ns2.example.com.
example.com.               60      IN      NS      ns1.example.com.

;; ADDITIONAL SECTION:
ns1.example.com.           60      IN      A       <public-ip-vps1>
ns2.example.com.           60      IN      A       <public-ip-vps2>

;; Query time: 43 msec
;; SERVER: <cluster-ip>#53(dns.example.com) (UDP)
;; WHEN: Sun Aug 14 13:18:04 CEST 2025
;; MSG SIZE  rcvd: 165

UDPRoute and TCPRoute

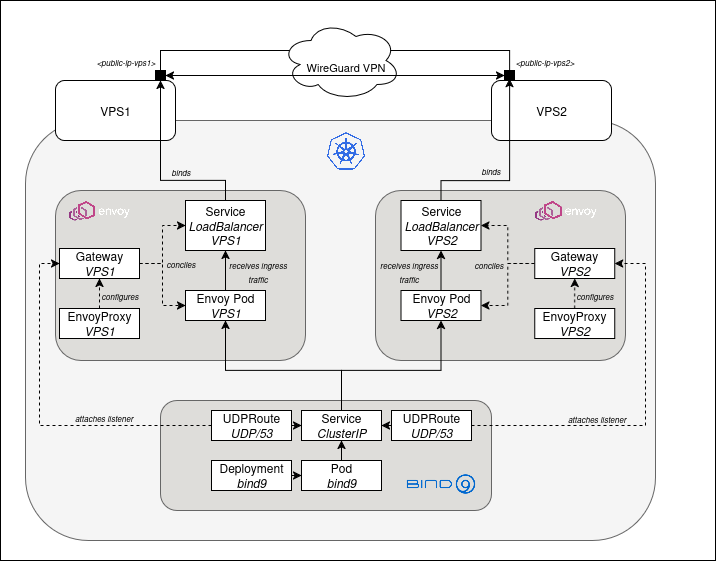

The final step is to expose the DNS server. Since the Envoy Gateway API is already in place, this becomes straightforward. We simply define a UDPRoute and a TCPRoute and attach them to the gateway, making our authoritative DNS service available to the outside world.

apiVersion: gateway.networking.k8s.io/v1alpha2
kind: UDPRoute
metadata:
  name: example-com-dns-udp-route
  namespace: bind9
spec:
  parentRefs:
    - name: vps1-gateway-dns
      namespace: gateway
      sectionName: dns-udp
      port: 53
    - name: vps1-gateway-dns
      namespace: gateway
      sectionName: dns-udp
      port: 53
  rules:
    - name: dns-udp
      backendRefs:
        - kind: Service
          name: bind9
          port: 53
---
apiVersion: gateway.networking.k8s.io/v1alpha2
kind: TCPRoute
metadata:
  name: example-com-dns-tcp-route
  namespace: bind9
spec:
  parentRefs:
    - name: vps1-gateway-dns
      namespace: gateway
      sectionName: dns-tcp
      port: 53
    - name: vps2-gateway-dns
      namespace: gateway
      sectionName: dns-tcp
      port: 53
  rules:
    - name: dns-tcp
      backendRefs:
        - kind: Service
          name: bind9
          port: 53

Once the routes are defined, check their status. This will tell you whether they have been accepted by the gateway.

kubectl get udproute example-com-dns-udp-route -n bind9 -o yaml

In the status output, look for a message like this:

message: Route is accepted
observedGeneration: 1
reason: Accepted
status: "True"
type: Accepted

This indicates that the routes are active and your DNS server is now publicly reachable.

To verify, you can run a simple dig query from your local machine:

dig @<vps1-public-ip> example.com

If everything is configured correctly, you should receive a proper DNS response.

In the next post, we will deploy cert-manager to automate the issuance of TLS certificates using the DNS01 challenge. This will build directly on the authoritative DNS setup we created here. Stay tuned for that deep dive!
